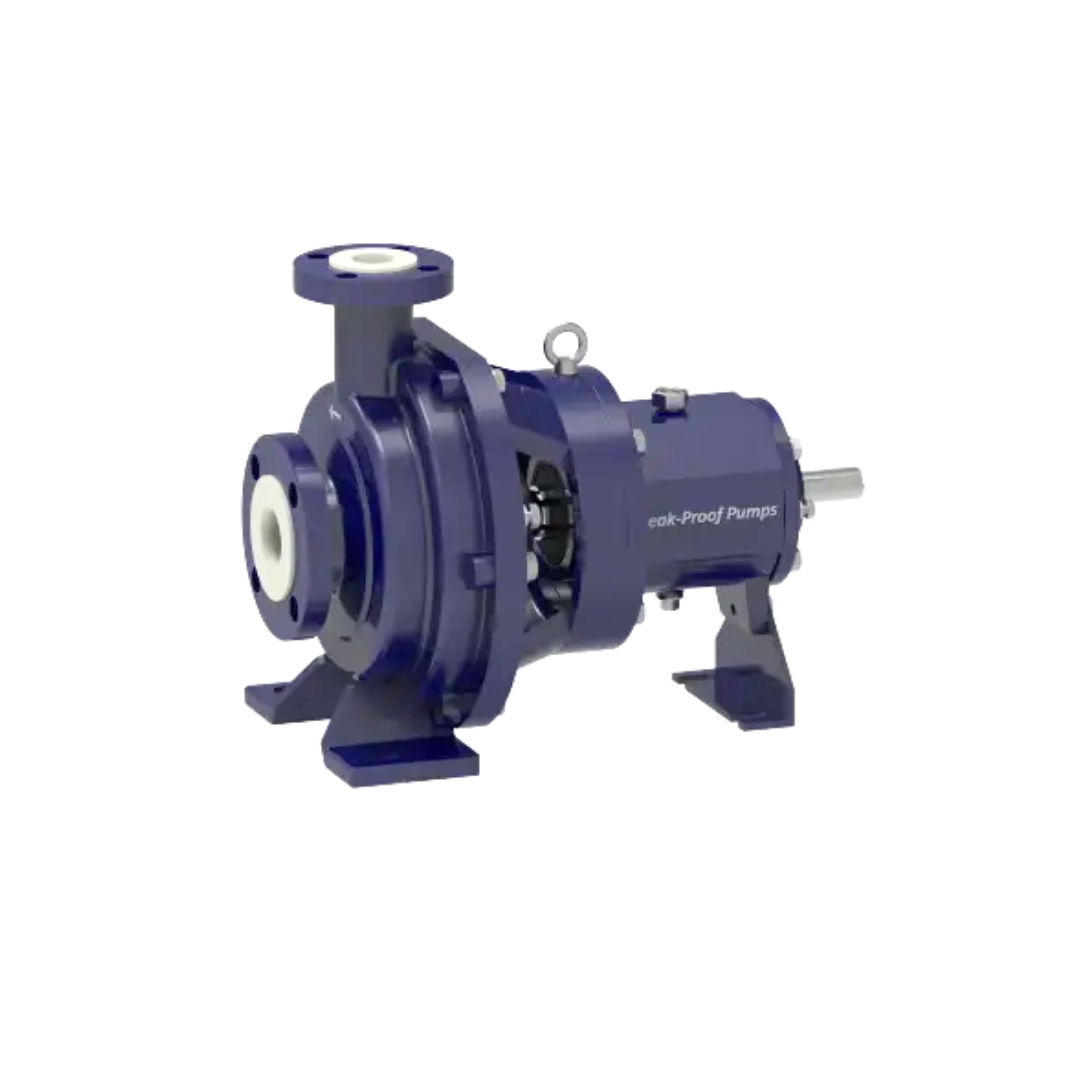

EER

Parameter	Specification
Design Standard	ISO 5199/2858
Capacity	120 m³/hr
Head	Up to 95m
Pressure	16 bar
Temperature	Up to 175°C
Max Operating Speed	3600 rpm
Flange Rating	ANSI B16.5 class 150
Material (Casing/Impeller)	CS, SS, Hast alloy, and other metallurgy on request
Options	Cooling Jacket, Gland Packing
